How to Install a Motorcycle Bi-LED Projector: A General Guide
Upgrading to an AOZOOM Bi-LED projector is one of the most rewarding modifications you can make to your motorcycle. The performance leap over a stock halogen bulb is immense. While we strongly recommend professional installation for the best and safest results, understanding the process can help you know what to expect.
This article provides a general overview of the steps involved in a typical projector retrofit. Note: Every motorcycle is different, and these steps are for informational purposes only.

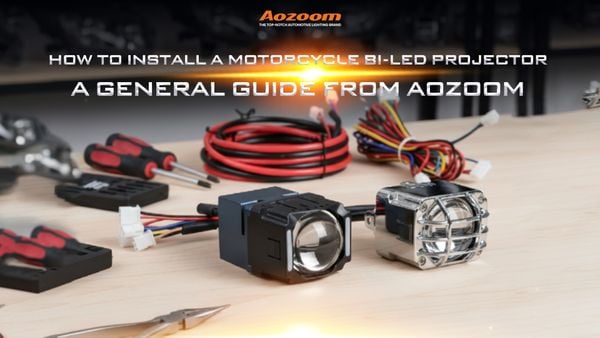

The components and tools required for a motorcycle Bi-LED projector headlight installation.
Step 1: Accessing the Headlight Housing
First, the headlight housing must be removed from the motorcycle. This process varies widely between bikes:
- Naked Bikes: Usually straightforward, involving a few bolts holding the headlight bucket.
- Sportbikes/Touring Bikes: This is often the most time-consuming part, requiring the careful removal of front fairings and windscreens. Be sure to keep track of all bolts and clips.
Step 2: Opening the Headlight
Most modern headlight housings are sealed with a strong adhesive. To open them, the housing must be carefully heated to soften the glue. This is typically done with a heat gun or by placing the headlight in a preheated oven for a short period at a low temperature. Once the adhesive is soft, the lens can be gently pried away from the back of the housing. This is a delicate step that requires patience to avoid damaging the plastic.
Step 3: Mounting the Projector
With the headlight open, the original halogen bulb reflector is exposed. The new Bi-LED projector (like the AOZOOM π10 or π20) is designed to be mounted through the hole where the old bulb was located. It's secured from behind with a lock ring and adapter plates.
It is absolutely crucial to ensure the projector is mounted perfectly level. The rotational alignment must be precise so that the low beam cutoff line is perfectly horizontal.

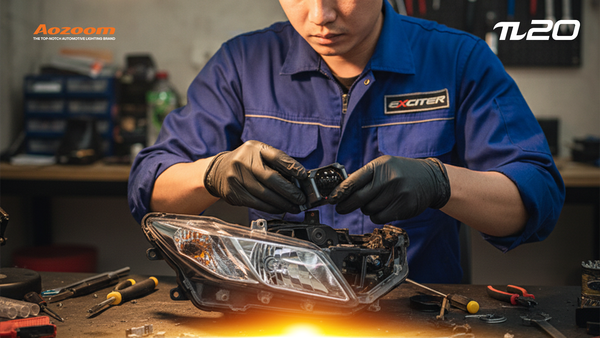

A technician carefully aligning an AOZOOM Bi-LED projector during a headlight retrofit.
Step 4: Wiring
The projector needs to be connected to your motorcycle's electrical system. A wiring harness is used for this.
- Power: Connects directly to the battery for stable power.
- Ground: Connects to a solid chassis ground point.
- Headlight Trigger: Plugs into your original headlight socket to receive the on/off signal.
- High Beam Solenoid: Connects to the high beam circuit to activate the cutoff shield.
All wiring should be neatly routed and secured, away from hot engine parts or moving suspension components.
Step 5: Sealing and Reassembly
Before sealing, it's vital to clean the inside of the housing and lens to remove any fingerprints or dust. A new layer of high-quality butyl sealant is added to the housing's channel. The lens is then pressed firmly back into place, and clamps are often used to hold it together while the sealant cures, ensuring a waterproof seal.
Once cured, the headlight can be reinstalled on the motorcycle, and all fairings can be reattached. The final step is to properly aim the headlight beam.
Conclusion: An Expert's Job
As you can see, installing a Bi-LED projector is a detailed process that requires specific tools and expertise. A small mistake can lead to a poorly aimed beam, a leaky headlight, or damaged parts. For a perfect, safe, and reliable result, we always recommend entrusting the job to a professional installer.
