Motorcycle Lighting Troubleshooting: Common Issues & Fixes
You’ve just installed your new AOZOOM Bi-LED projector, and you're excited to hit the road. But what if something doesn't seem right? A flickering light or a poorly aimed beam can be frustrating and unsafe.
Before you worry, know that most post-installation issues are minor and can be resolved with a few simple checks. This guide will walk you through the most common problems and how to troubleshoot them.
A motorcyclist troubleshooting a headlight issue on their bike at night.
Issue 1: The Light Flickers or Cuts Out
A flickering headlight is often a sign of a poor electrical connection.
- Check the Plugs: The most common culprit is a connector that isn't fully seated. Go back through the wiring harness and ensure every plug is pushed in firmly until it clicks.
- Check the Battery Terminals: A loose or corroded battery terminal can cause intermittent power loss to the entire bike, including the lights. Ensure the terminals are clean and tight.
- Check the Ground Connection: The wiring harness needs a solid connection to the bike's frame (ground). If this connection is loose or attached to a painted surface, it can cause flickering. Ensure it's connected to clean, bare metal.
Issue 2: The High Beam Doesn't Work
If your low beam works perfectly but the high beam doesn't activate, the issue is almost always with the high beam solenoid connection.
- Check the Solenoid Plug: The projector has a small, two-pin plug that controls the high beam shield. Ensure this is connected correctly and securely to the wiring harness.
- Check the Headlight Trigger: Make sure your original headlight socket is plugged firmly into the new wiring harness, as this is where the signal for both low and high beams comes from.
Issue 3: The Beam Pattern is Crooked or Aimed Incorrectly
This is the most critical issue to fix, as a poorly aimed beam is unsafe.
- Rotational Alignment: If the low beam cutoff line isn't perfectly horizontal, the projector needs to be rotated inside the headlight housing. This adjustment must be made before the headlight is sealed back up. A crooked cutoff will be distracting and ineffective.
- Vertical Aiming: Your headlight needs to be aimed correctly so it illuminates the road without blinding others. This is the final adjustment you should make after the headlight is fully reinstalled on the bike.

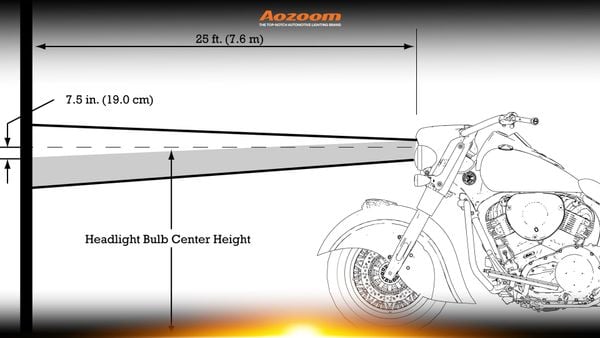

A diagram illustrating the correct procedure for aligning a motorcycle projector headlight beam.
How to Aim Your Headlight:
- Place your bike on level ground, about 10-15 feet away from a flat wall or garage door.
- Sit on the bike to simulate your normal riding weight, which compresses the suspension.
- Turn on the low beam. The sharp cutoff line should be aimed slightly below the height of the headlight's center. A good rule of thumb is that the top of the cutoff should be about 2-3 inches lower on the wall for every 10 feet of distance.
- Use your motorcycle's headlight adjustment screws (usually on the back of the housing) to move the beam up or down until it's correctly aimed.
Conclusion: When in Doubt, Ask a Pro
These troubleshooting steps can solve the vast majority of common lighting issues. However, if you've checked everything and are still having problems, it's best to consult the professional who installed the light. Electrical systems can be complex, and an expert can quickly diagnose and resolve the issue safely.
Still having trouble after checking these steps? Contact our expert support team for help.
