Understanding AOZOOM Projector Optics: M-CUPs vs. Dual Cup vs. TIR Explained

Any high-performance headlight projector can produce bright light. But what separates a good projector from a truly great one isn't just the LED or Laser chip—it's the optics. The intricate science of how light is captured, focused, and shaped is where the real magic happens. It’s what defines the width, smoothness, and range of the beam you see on the road.

AOZOOM's global leadership is built on a foundation of optical engineering excellence. We don’t rely on a one-size-fits-all approach. Instead, we deploy specialized optical systems tailored to the specific performance goals of each projector. In this technical guide, we'll explain three of our core proprietary technologies: M-CUPs, Dual Cup, and TIR Super LED.

An abstract, high-tech image showing light beams being focused and shaped by advanced optical lenses.

M-CUPs (Multi-Cup) Reflector Technology - The Master of Smoothness

Found in our latest generation of Bi-LED projectors like the AOZOOM CAPTAIN NEW ARRIVAL, the M-CUPs reflector is designed to create the perfect, all-around beam.

What is it?

Instead of a single, smooth, bowl-shaped reflector, the M-CUPs design features a complex surface with multiple, precisely calculated facets and curves.

How it works:

Each "cup" or facet on the reflector's surface is angled to catch light from the LED chip and direct it to a specific point in the beam pattern. This multi-surface approach allows our engineers to have granular control over the light distribution.

The Advantage:

• Flawless Uniformity: It completely eliminates hotspots and dark areas, creating a seamless "carpet" of light.
• Exceptional Width: It excels at casting a very wide beam, giving you incredible peripheral vision.
• High Efficiency: By controlling the light so precisely, it minimizes wasted light spill and maximizes the amount of light directed onto the road.

Choose projectors with M-CUPs if you want the best all-around performance with the widest and smoothest possible beam.

Animation demonstrating how the AOZOOM M-CUPs reflector enhances light focus and beam smoothness.

Dual Cup Technology - Optimized for Separation

Prominently featured in our compact motor projectors like the π10 and π20, Dual Cup technology is a clever solution for creating distinct, optimized beam patterns in a small package.

What is it?

This design incorporates two separate, independent reflector bowls within a single projector housing—one dedicated to the low beam and a second dedicated to the high beam.

How it works:

The low beam LED chip has its own reflector, shaped specifically to create a wide beam with a sharp cutoff. The high beam LED chip has a different reflector, shaped to gather light into a more focused, long-distance punch. The projector's internal mechanics switch between these two dedicated beams.

The Advantage:

• Purpose-Built Beams: Each beam pattern is individually optimized for its specific task, rather than being a compromise.
• Clear, Powerful High Beam: It allows for a very distinct and powerful high beam without affecting the shape of the low beam.
• Compact Performance: It's an efficient way to achieve true Bi-LED functionality in very small projector bodies.

Choose projectors with Dual Cup technology when you need distinct, high-performing low and high beams from a compact source.

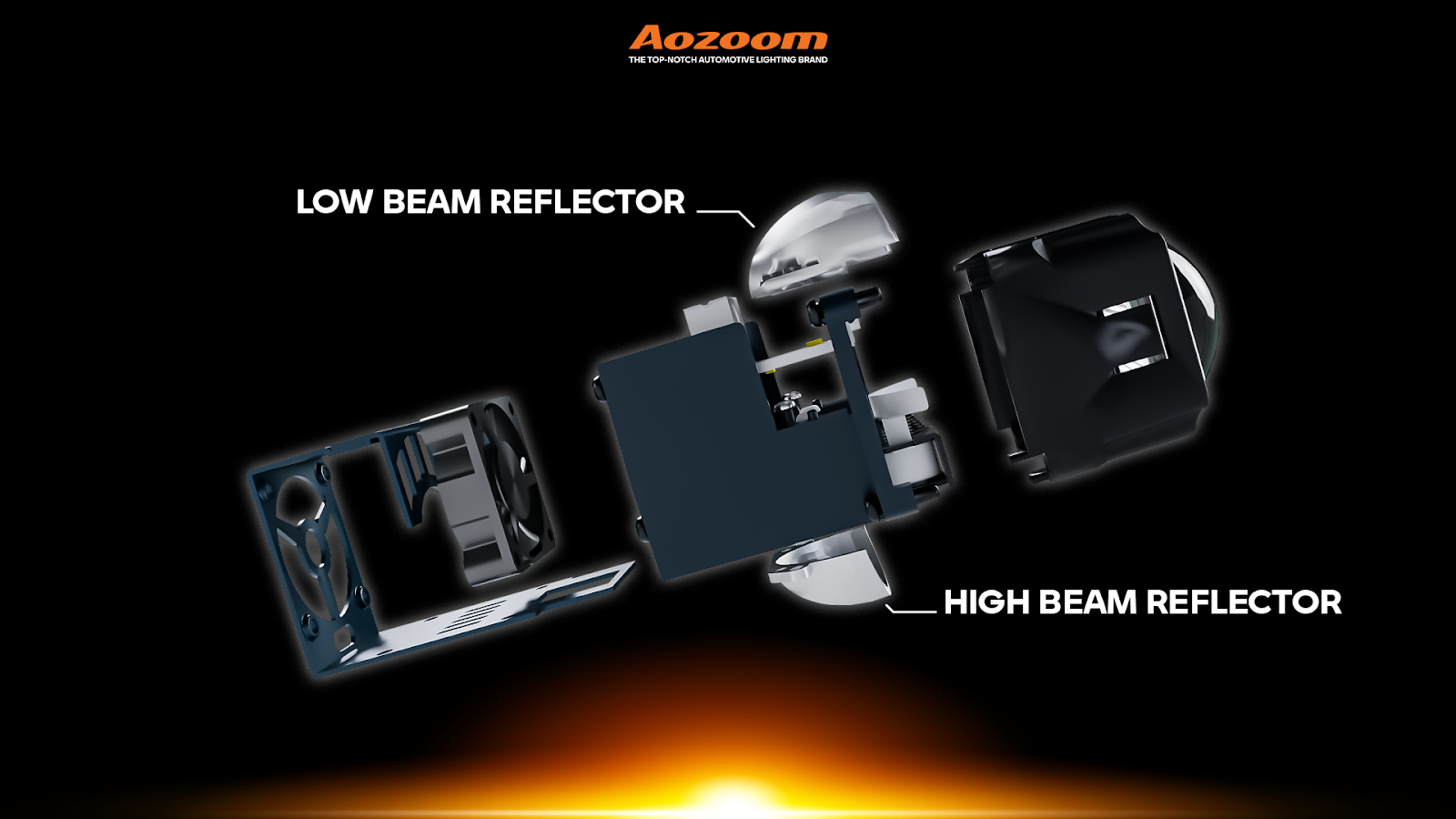

Cutaway view of an AOZOOM projector with Dual Cup technology, showing separate reflectors for low and high beam.

TIR Super LED - The Pinnacle of Efficiency

TIR (Total Internal Reflection) is a different optical philosophy altogether, seen in specialized products like the AOZOOM WASP fog light. Instead of a reflector behind the light source, it uses a lens in front of it.

What is it?

A TIR optic is a solid lens, often dome-shaped, that is placed directly over the LED chip. It's designed so that nearly all light entering it is reflected internally and then directed forward in a highly controlled beam.

How it works:

Light from the LED enters the TIR lens. Due to the precise angles of the lens's internal surfaces, the light rays are unable to escape. They are "trapped" and perfectly reflected internally until they exit through the front face of the lens in a specific, pre-determined pattern.

The Advantage:

• Maximum Efficiency: TIR optics can have a light transmission efficiency of over 90%, compared to 60-70% for a standard reflector. Almost no light is wasted.
• Incredible Focus: It allows for the creation of very precise and controlled beam patterns, from wide floods to extremely narrow spotlights.
• Compactness: Because it eliminates the need for a deep reflector bowl, it allows for very powerful and compact lighting designs.

Choose projectors with TIR technology when maximum efficiency and precise beam control are the absolute top priorities.

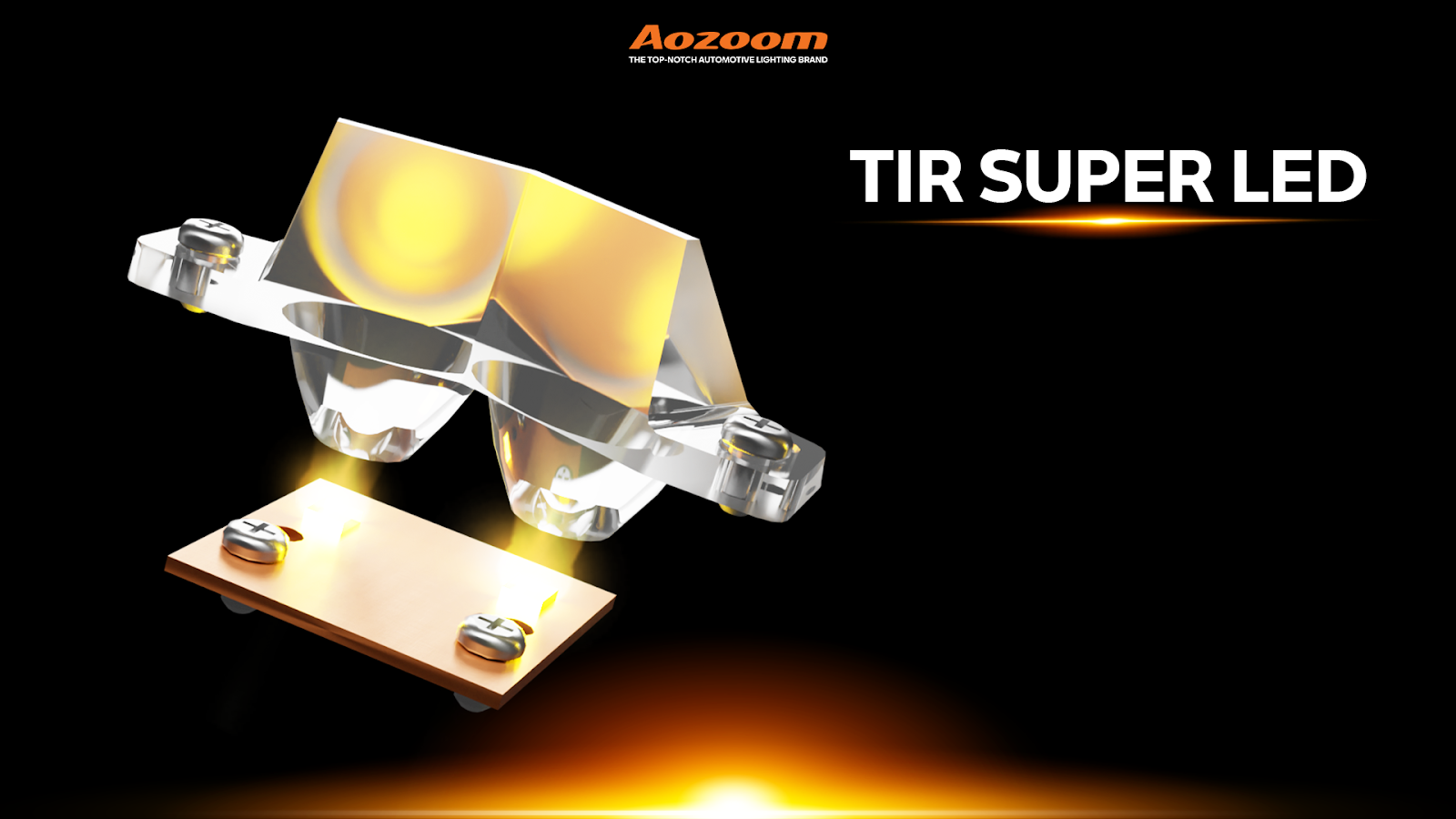

Close-up of a Total Internal Reflection (TIR) Super LED lens on an AOZOOM product for maximum light efficiency.

The Right Tech for the Right Job

Understanding these core technologies reveals why AOZOOM remains at the forefront of the industry. We don't believe in a single solution. We believe in engineering the perfect optical system for every application.

Whether it's the smooth, wide beam of the CAPTAIN's M-CUPs, the distinct patterns of the π20's Dual Cup, or the incredible efficiency of the WASP's TIR lens, our commitment to optical science is what allows you to own the night with confidence.

To see how these different optical technologies perform in the real world, contact your authorized AOZOOM dealer for a live demonstration.
