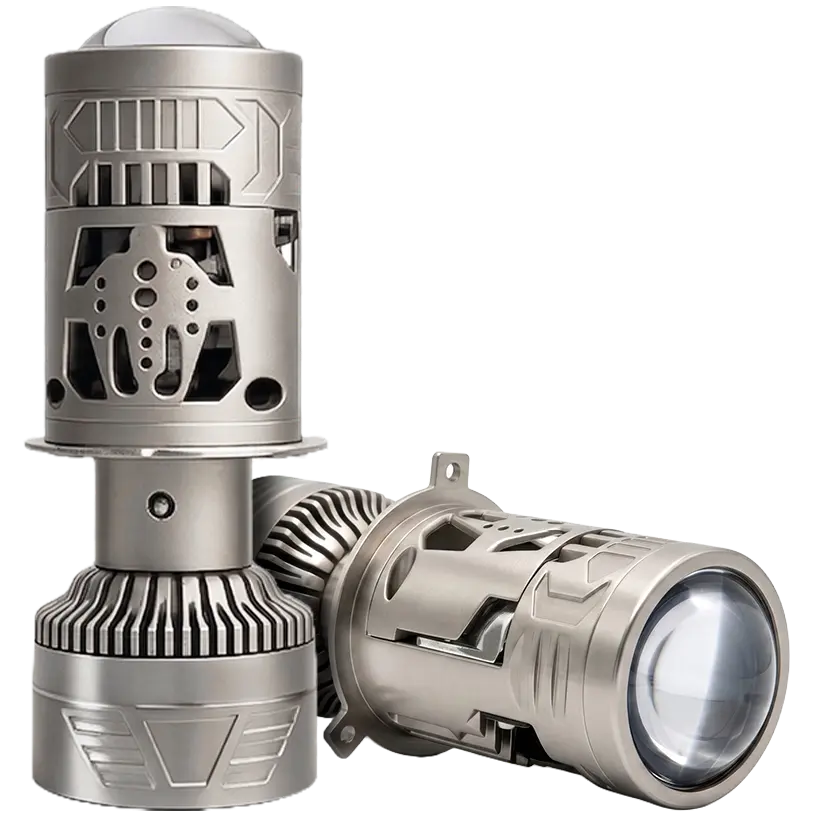

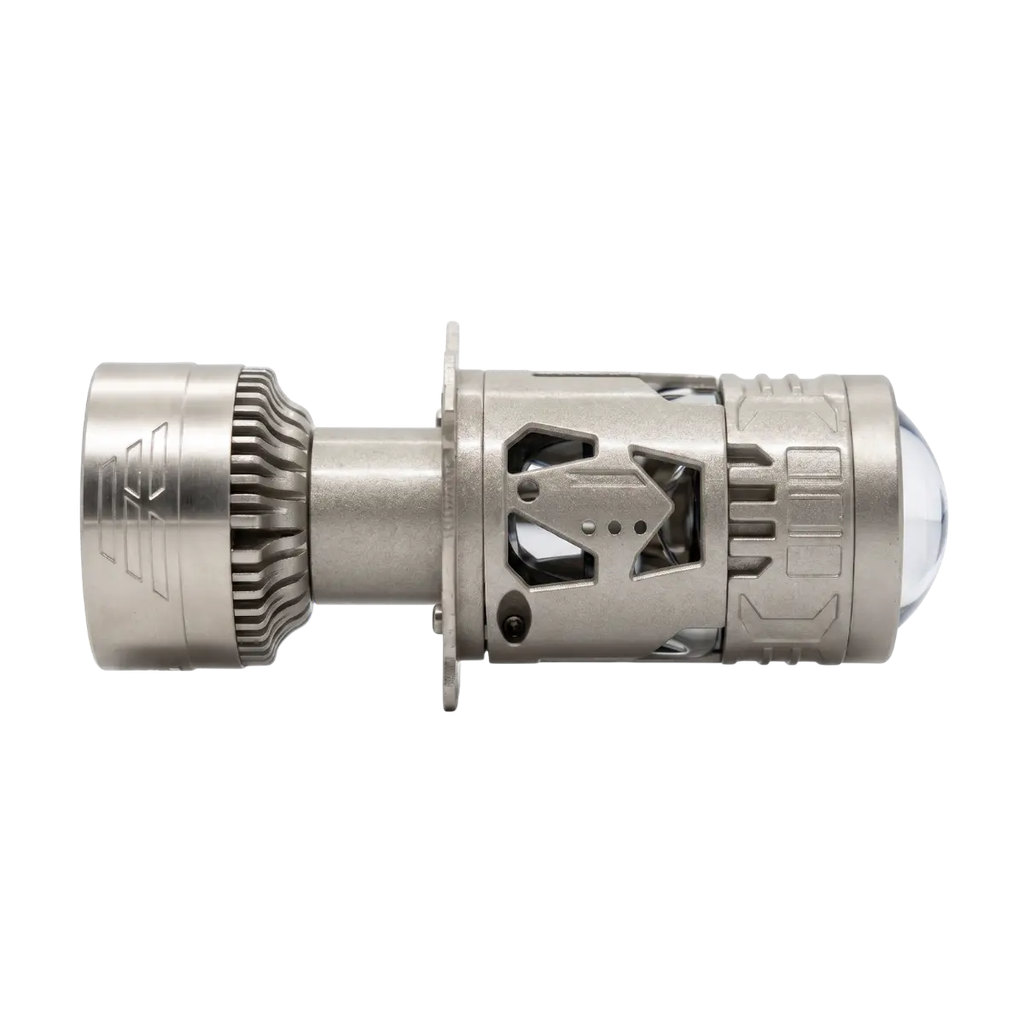

Upgrading lights for older motorcycle models is always a challenge, especially if you want to keep the original (OEM) halogen H4 housing. This is why the Mini Bi-LED PI05 was created.

Instead of just making the light brighter at any cost, the PI05 sets a new standard: easy installation, preserving the original design, and strictly controlling the light beam to avoid blinding others. In this article, AOZOOM will break down the technology and real-world benefits of this perfect lighting solution for your bike.

PI05 Solving Real Problems

To understand the value of PI05, we must look at the needs of daily riders. Most people don't want a complicated setup that requires cutting wires. They simply want a light that is brighter, clearer, and easy to install while keeping the bike original.

SPECIFICATION

Category	Specifications
Product Name	PI05
Power	60W - 70W
Color Temperature	5500K (Pure White)
Technology	DUAL CUP
Low Beam LED Chips	6 chips 3570 / 60*68mil
High Beam LED Chips	Single chip 5050 / 72mil
Operating Voltage	9V - 18V
Operating Temp	-40°C to +90°C
Protection Rating	IP65 (Water/Dust resistant)
Warranty	18 Months

The Struggles with "Old" Halogen Systems

These lights often feel weak at night. The light spreads too much and lacks a focused center, making it hard to see in the dark or bad weather.

Common upgrade options often cause two big problems:

- The "Cutting" Nightmare: Many owners are afraid of cutting their headlight housing or changing the factory wiring.

- Blinding Others: Poor quality LED bulbs often scatter light everywhere, blinding oncoming traffic. This is dangerous and frustrating for other drivers.

PI05: The Practical Solution

The PI05 was designed specifically for H4 halogen housings with three promises: True Plug-and-Play, 100% Original Preservation, and Sharp Cut-off Lines. It is not just about power; it is about providing a smart, clean, and civilized lighting solution for your daily commute.

DUAL CUP: Smart Space Saving

The DUAL CUP structure is the art of arranging light parts to get the best performance in a tiny size. For motorcycles with small headlight spaces, this is very practical. It clearly separates the low beam and high beam, ensuring the light goes exactly where you need it.

Civic-Beam Reflector Tech: The Game Changer

This is the most important feature of the PI05. Civic-Beam technology creates a low beam that is highly focused with a "razor-sharp" cut-off line.

- Benefit: The light stays on the road, helping you see obstacles clearly.

- Safety: It prevents light from shining into the eyes of oncoming drivers. This is "Civilized Tuning."

Precision Mini Projector (PMP)

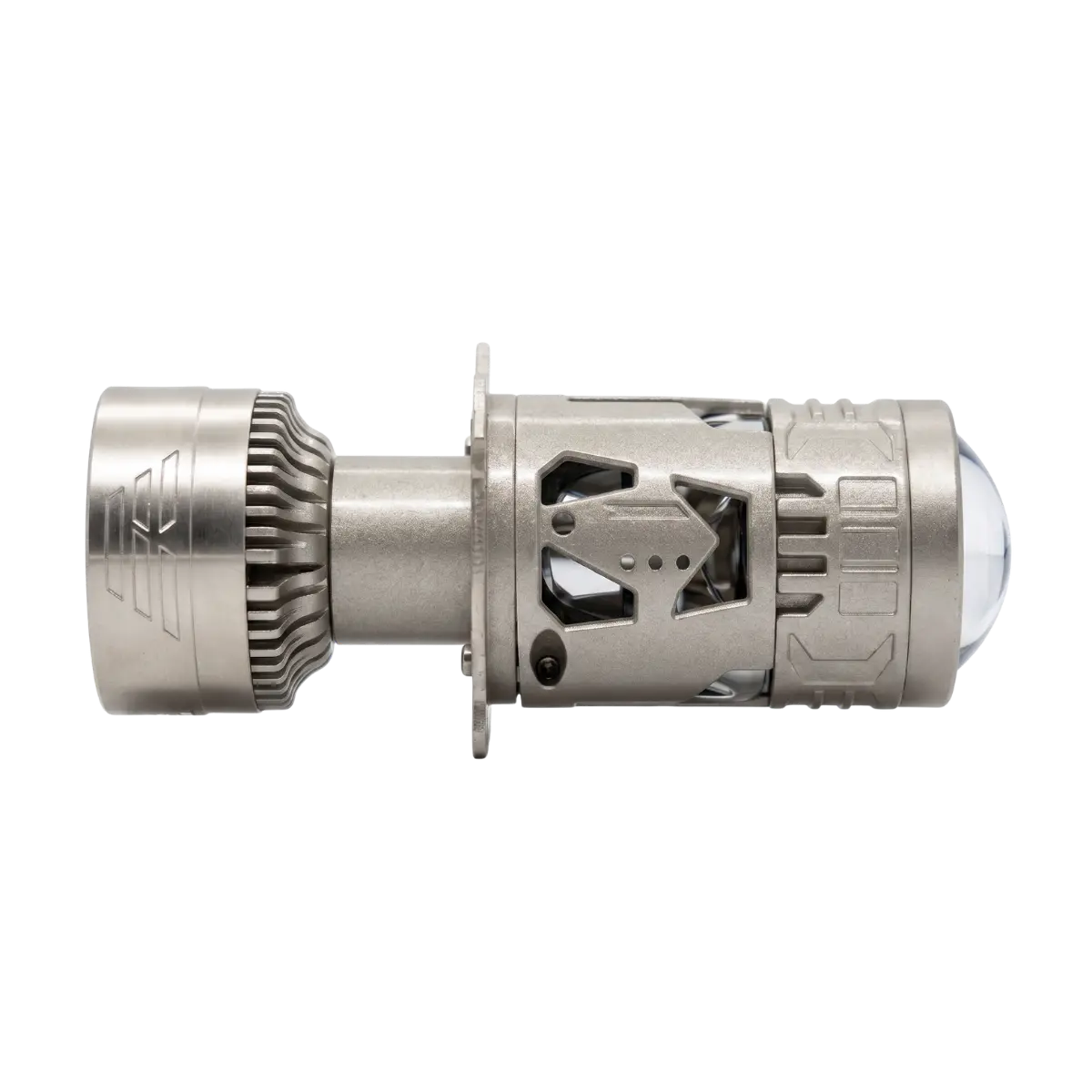

Even though it is small, the PI05 uses a PMP system similar to large Bi-LED lights found in luxury cars. It includes high-quality LED chips, reflectors, and a precise lens. This setup focuses the light much better than a standard LED bulb.

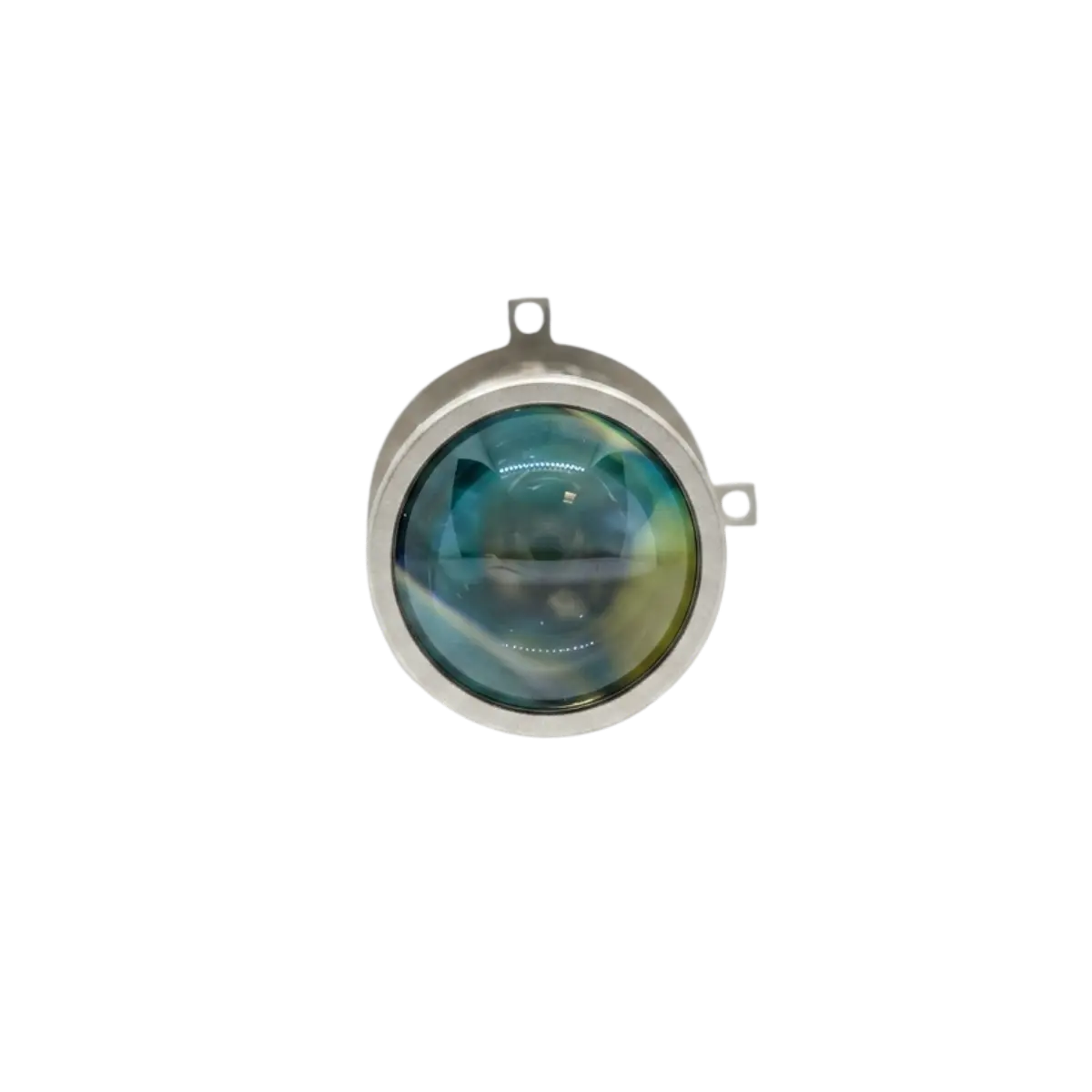

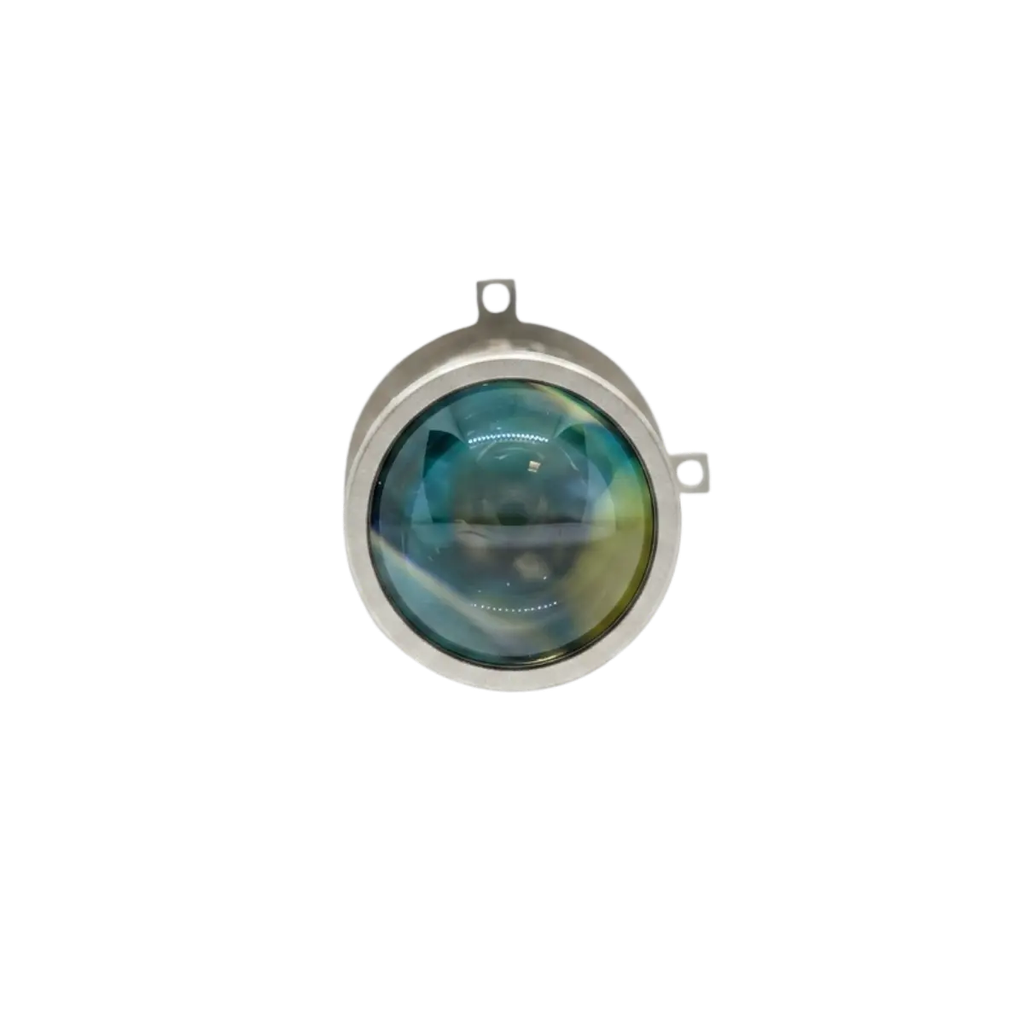

Technical Note: The PI05 uses a PC Lens (Polycarbonate). It is durable and clear, but users should know it has a slightly lower heat limit compared to pure glass. However, for daily motorcycle use, it offers a perfect balance of weight and performance.

Key Features of PI05

1. Keeps Your Bike Original

The PI05 uses a standard H4 socket. There is no need to cut, drill, or change your bike’s structure. This is the best choice for riders who want better light but want to keep their bike’s factory look and value.

2. Civilized Light with Internal Reflector

By having its own built-in reflector, the PI05 controls the light beam strictly. In busy cities, this is essential. You get a powerful view of the road while showing respect to others by not blinding them.

3. Designed for Specific Bike Groups

Instead of trying to fit every vehicle, the PI05 focuses on motorcycles with H4 halogen housings. This ensures nearly 100% compatibility and a perfect fit during installation.

TEMPERATURE SENSORS FOR CAR LIGHTS

During operation, AOZOOM's LED headlights emit heat. However, this amount of heat emitted is very small. AOZOOM's LED headlights convert 90% of the energy consumed into light and only 10% into heat energy. This is why AOZOOM's LED headlights are highly trusted for the optimal efficiency they provide.

However, temperature is always the enemy of any electronic device. Although AOZOOM's LED headlights emit very little heat compared to other technologies, if this heat is not handled gradually, it will still accumulate and weaken the LED elements, causing them to explode and affect the lifespan of the lights.

When the temperature rises, it leads to a decrease in voltage across the resistor, thereby limiting the voltage on the device. At the same time, if the power continues to operate at the initial rating, it will cause damage to the LED lights.

Therefore, in addition to the heat sink with fans and heat dissipation designs through the lamp shell, it is necessary to equip the LED headlights with temperature sensors.

The temperature sensor helps to measure the amount of thermal energy generated by the LED lights, then record, monitor and signal changes in temperature to the LED controller. At this point, the LED controller will adjust the operating power of the headlights accordingly, thereby always controlling thermal energy to increase the durability of the LEDs and the longevity of the AOZOOM headlights.

HIGH-QUALITY LED CHIPS AND LASER DIODES

High-quality LED chips and laser diodes have high luminous efficiency.
The light attenuation rate is slow and strictly adheres to the standards set by the Illuminating Engineering Society.
The quality and optimal standards are ensured through modern production lines and advanced technology.
The high color rendering index ensures a balance between luminous efficiency and color accuracy.
Superior thermal performance ensures longevity, stability, and reliability.

SMART LED DRIVER

The LED driver (also known as the LED power supply or LED controller) is an enclosed power source with a feedback signal that controls the current and working temperature of the LED chip to regulate the voltage and current supplied to the LED light.

The LED driver protects the LED light from voltage or current fluctuations. A small voltage fluctuation can cause a change in the current supplied to the LED light. This maintains the stability of the power and working temperature of the LED and ensures that the light operates within a certain current range for the best luminous efficiency and to ensure the durability of the LED chip.

The LED driver must be constructed to ensure that none of the feedback control components are cut or reduced, and that cost-saving control solutions are not used as they can affect the quality and durability of the system, including the driver and LED chip.

ADVANCED HEAT-DISSIPATION SYSTEM

AOZOOM uses three types of cooling systems:

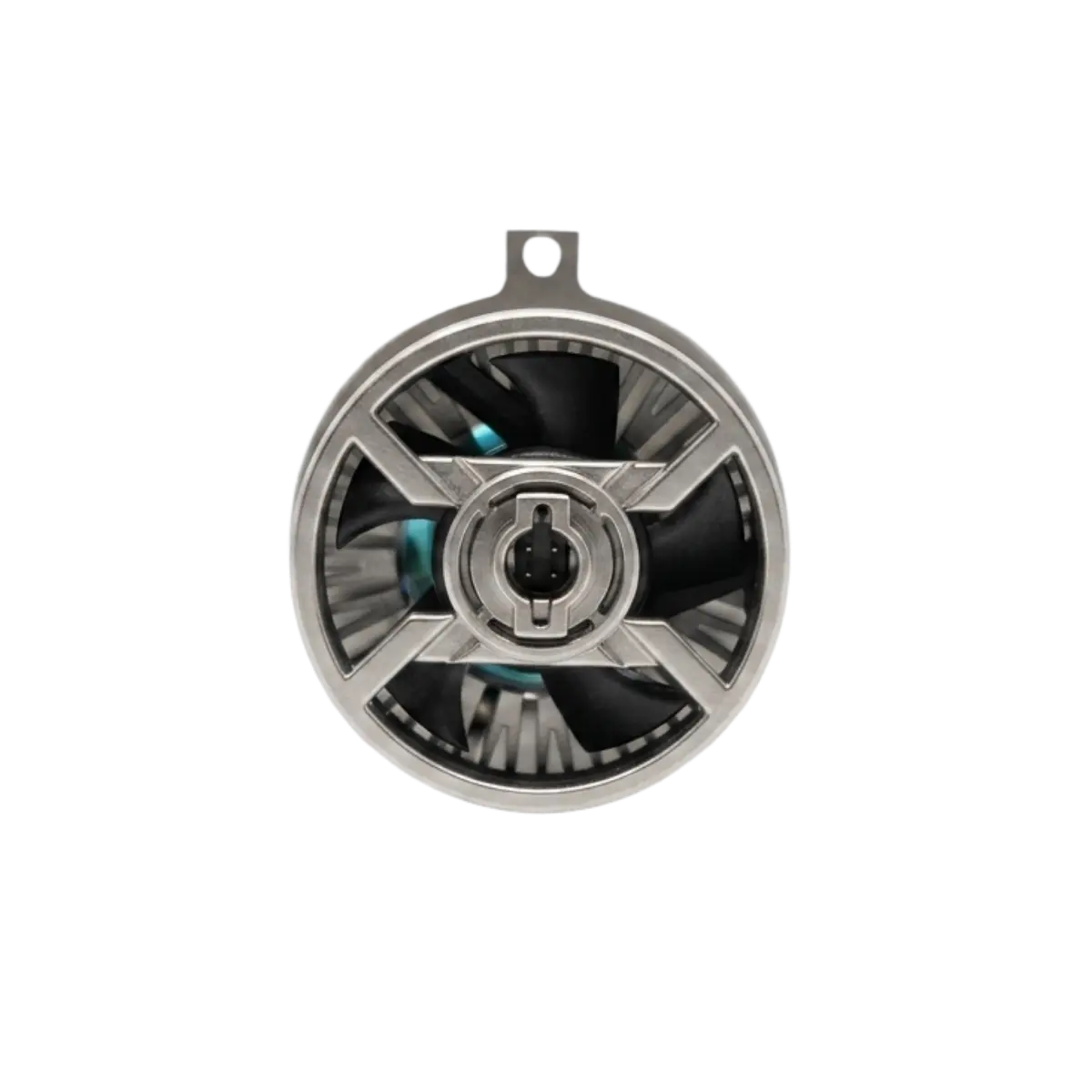

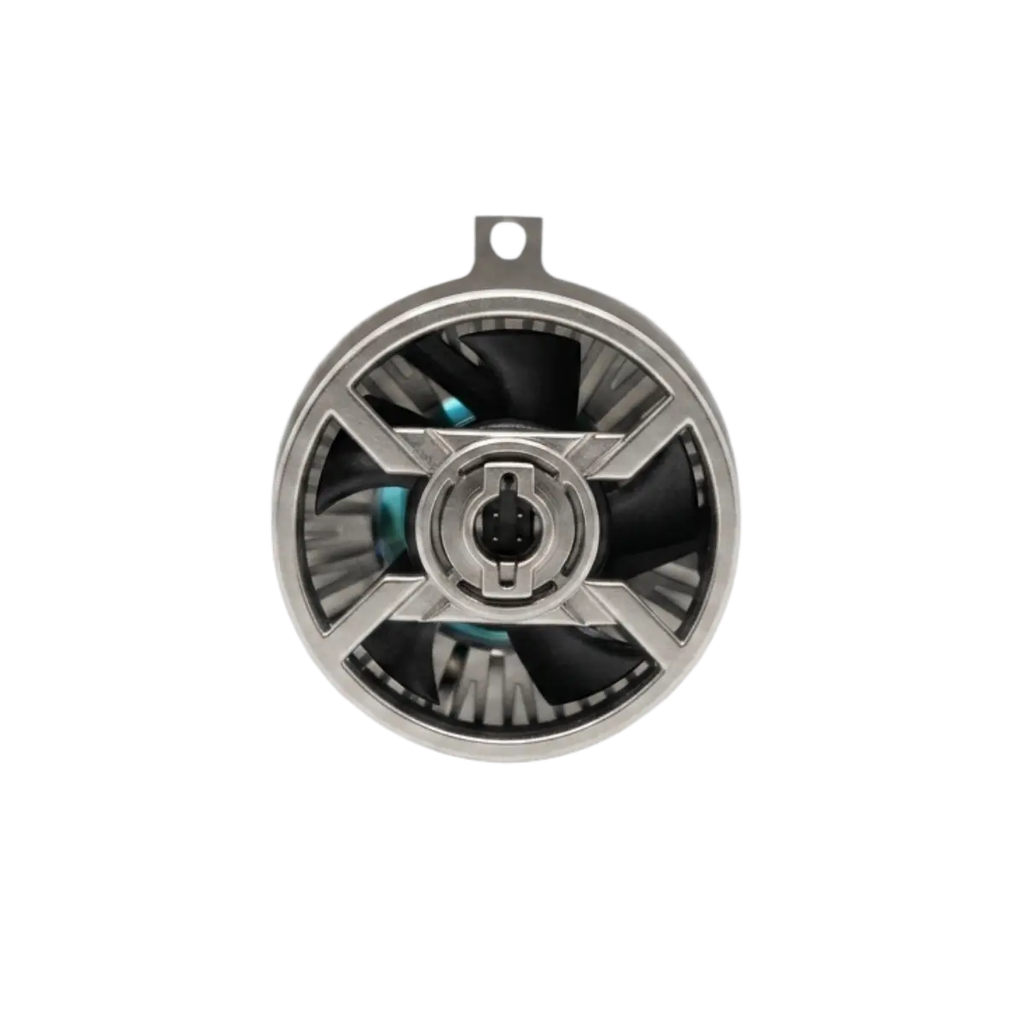

ACTIVE COOLING: Uses a fan to circulate air, helping to reduce temperature. The fan has high RPM (rotations per minute) and CFM (airflow rate) ratings.
PASSIVE COOLING: Uses copper metal to dissipate heat. Copper has a thermal conductivity rating of 308 W/m.K.
COOLING INTEGRATED INTO THE DESIGN: The light housing is designed with openings to allow for easy airflow and temperature reduction.
